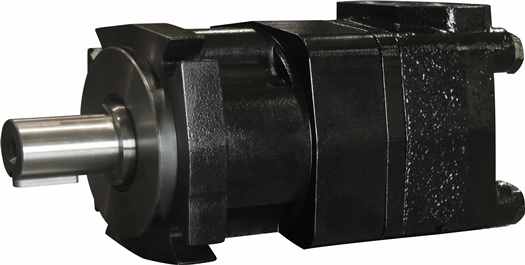

Description
| VALVING | TYPE | DISPLACEMENT R ANGE | TORQUE RANGE | SPEED RANGE | MAX PRESSURE | MAX FLOW |
|---|---|---|---|---|---|---|
| Spool | Gerolor | 160cc – 800cc (9.8 – 48.9 cu-in) | 471 – 1464 Nm (4160 – 12950 lb-in) | 20 – 1950 RPM | 200 Bar (2900 PSI) | 95 LPM (25 GPM) |
Model Code Specifications
| Feature | F4 | F4 Series Motor |
|---|---|---|
| Displacement | 160 | 159cc [9.8] |
| 200 | 201cc [12.3] | |
| 250 | 252cc [15.4] | |
| 320 | 317cc [19.9] | |
| 400 | 401cc [25.1] | |
| 500 | 535cc [31.9] | |
| 630 | 629cc [38.4] | |
| 725 | 725cc [44.2] | |
| Mount | B | 4-bolt standard SAE B w/4″ pilot |
| Shaft | G1 | 1 1/4″ straight keyed |
| F1 | 1 1/4″ 14T splined | |
| F3 | 1 1/4″ 14T splined – SAE short spline | |
| FE | 1.5″ 17T splined | |
| Ports | S | 1 1/16-12 SAE O-ring w/ 7/16-20 case drain |
| M | Euro 4-bolt split flange / G1 BSP | |
| Paint & Special Features* | ZB | Black Paint; Consult factory for special features |
Example: F4-160-B-G1-S-ZB= F4 series motor, 160cc, 4-bolt SAE B mount, 1-1/4″ keyed shaft, 1-1/16-12 ORB ports, black paint.
Contact your Flo-Torq sales representative to confirm final item ordering code and any special feature requirements.
Note: Custom shaft, mount and porting options may be available; consult your Flo-Torq sales representative.
