Description
| VALVING | TYPE | DISPLACEMENT R ANGE | TORQUE RANGE | SPEED RANGE | MAX PRESSURE | MAX FLOW |
|---|---|---|---|---|---|---|
| Spool | Gerolor | 230cc – 800cc (14.2 – 48.9 cu-in) | 670 – 1464 Nm (5925 – 12950 lb-in) | 15 – 770 RPM | 200 Bar (2900 PSI) | 125 LPM (33 GPM) |
Model Code Specifications

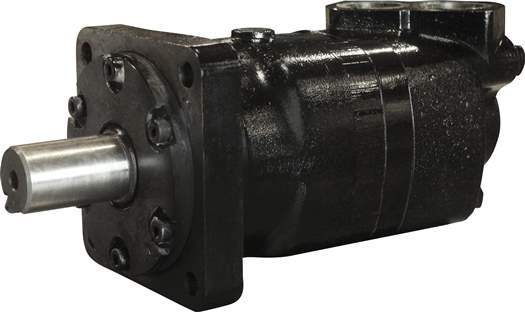

| Feature | F6 | F6 Series Motor |
|---|---|---|
| Displacement | 200 | 195cc [11.9] |
| 250 | 246cc [15.0] | |
| 315 | 311cc [19.0] | |
| 400 | 391cc [25.1] | |
| 500 | 491cc [29.9] | |
| 630 | 623cc [38.0] | |
| 800 | 802cc [48.9] | |
| 999 | 981cc [59.8] | |
| Mount | CC | SAE CC 4-bolt Standard |
| Shaft | G2 | 1 1/2″ straight keyed w/.375-16 tapped hole |
| FE | 1 1/2 17T splined 12/24 DP | |
| T2 | 1 5/8″ Tapered | |
| Ports | SF5 | 1 5/16-12 SAE O-ring w/ 7/16-20 case drain |
| SF | 4-bolt 3/4 Inch Split Flange | |
| Paint & Special Features* | ZB | Black Paint; Consult factory for special features |
Example: F6-200-CC-G2-SF5-0B= F6 series motor, 200cc, 4-bolt SAE CC mount, 1.5″ keyed shaft, 1-5/16-12 ORB ports, black paint.
Contact your Flo-Torq sales representative to confirm final item ordering code and any special feature requirements.
Note: Custom shaft, mount and porting options may be available; consult your Flo-Torq sales representative.
