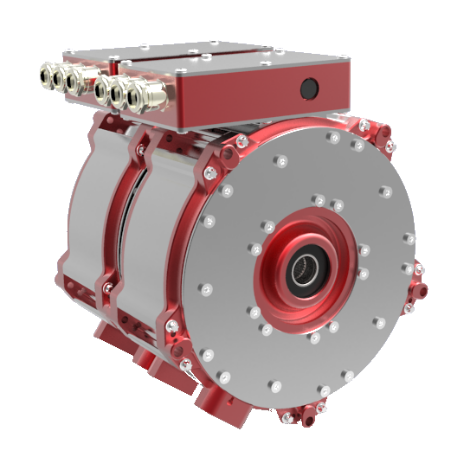

Axial Flux PMSM Motor, Magelec Propulsion
Motor M19Px-D
- High voltage
- Distributed winding
- Traction specification
- Water cooling
| Torque Cont: | 92Nm | |
| Torque Peak: | 262Nm | |
| Power Cont: | 88kW | (600V 5Turns) |
| Power Peak: | 232kW | (600V 5Turns) |
| Efficiency Peak: | >95% | |
| Speed Max: | 15000rpm | |

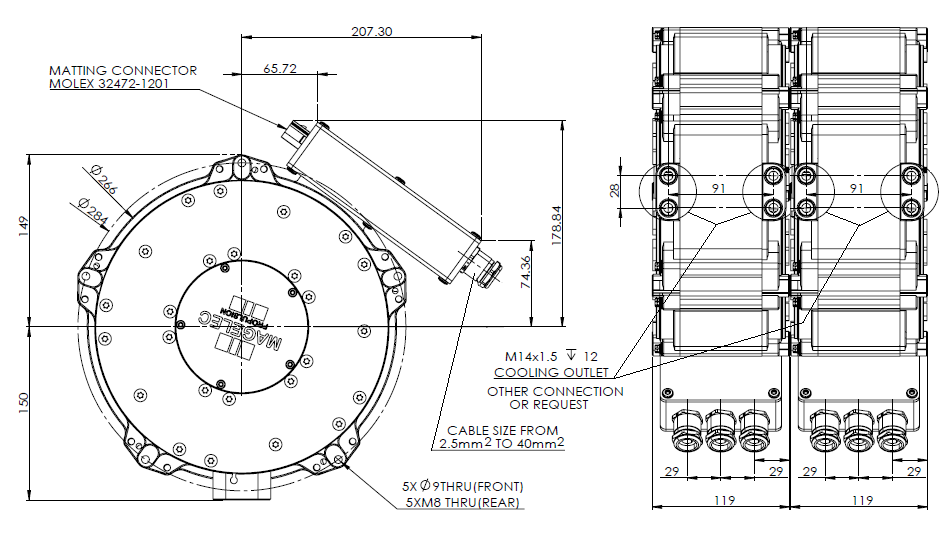

| Case Φ: | 268mm | |
| Case L: | 238mm | |
| Mass: | 39.4kg |
