TRILOBE YOKE
TRILOBE YOKE - Image 2
TRILOBE YOKE - Image 3
, ,

TRILOBE YOKE

Tube yokes are used to connect the steel tube to the
implement, or tractor, yoke. These come in a variety of
sizes and profiles to guarantee a proper fit for your
driveline.

Categories: , ,

Description

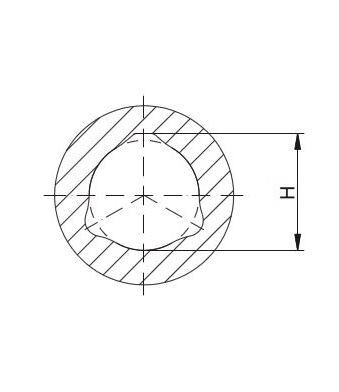

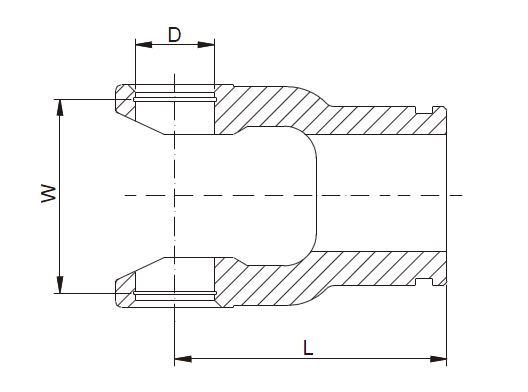

 (millimeters)
P/N SERIES TYPE DIM D DIM W DIM L DIM H
R15251 6 INNER 30.2 92.0 106 47.4
R15252 6 OUTER 30.2 92.0 106 56.8
R15253 7 INNER 30.2 106.5 117 47.4
R15254 7 OUTER 30.2 106.5 117 56.8
R15255 8 INNER 35.0 106.5 127 47.4
R15256 8 OUTER 35.0 106.5 127 56.8
R15257 7A INNER 35.0 94.0 106 47.4
R15258 7A OUTER 35.0 94.0 106 56.8
R15259 8A INNER 36.0 89.0 106 47.4
R15260 8A OUTER 36.0 89.0 106 56.8
