Axial Flux PMSM Motor, Magelec Propulsion

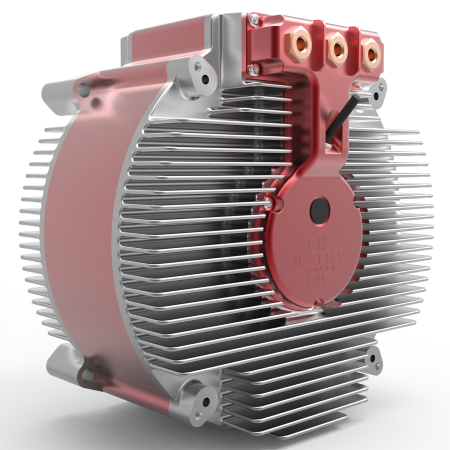

Motor M17Cx-S
- Low voltage
- Condensed winding
- Traction specification
- Air cooling

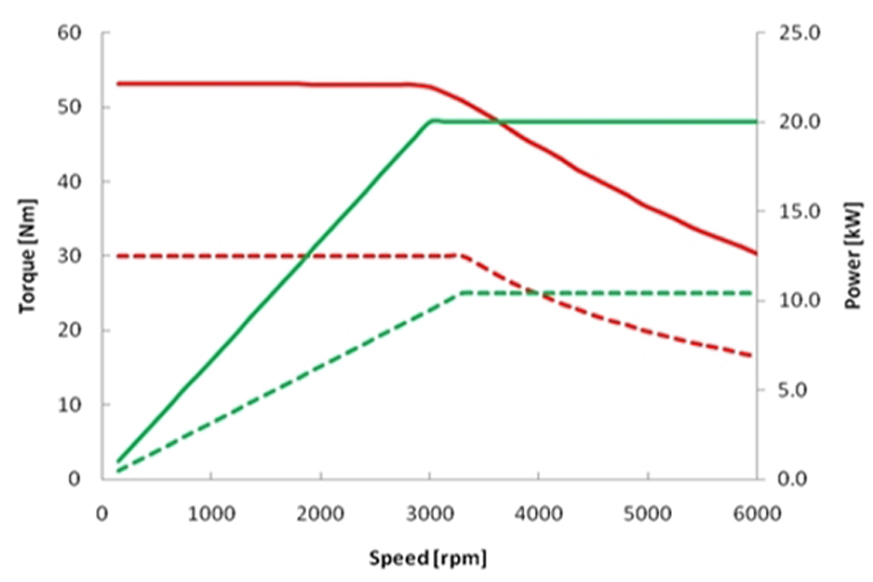

| Torque Cont: | 30Nm | |
| Torque Peak: | 53Nm | |
| Power Cont: | 10.5kW | (48V 3Turns) |
| Power Peak: | 20kW | (48V 3Turns) |

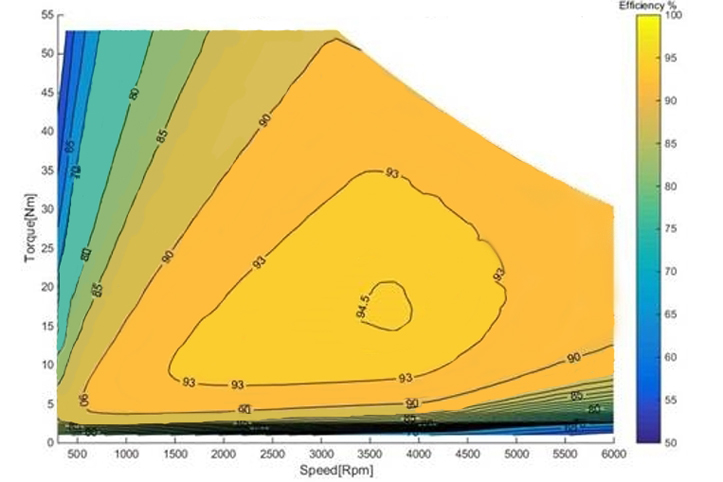

| Efficiency Peak: | >94% | |
| Speed Max: | 6000rpm | |
| Mass: | 14.5kg |
