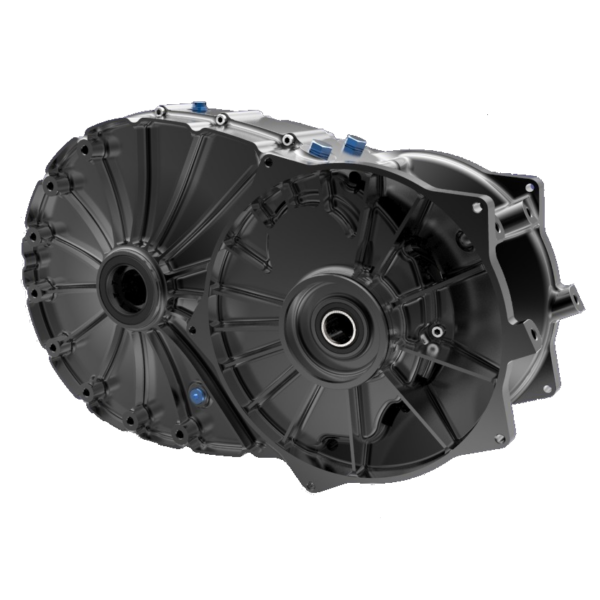

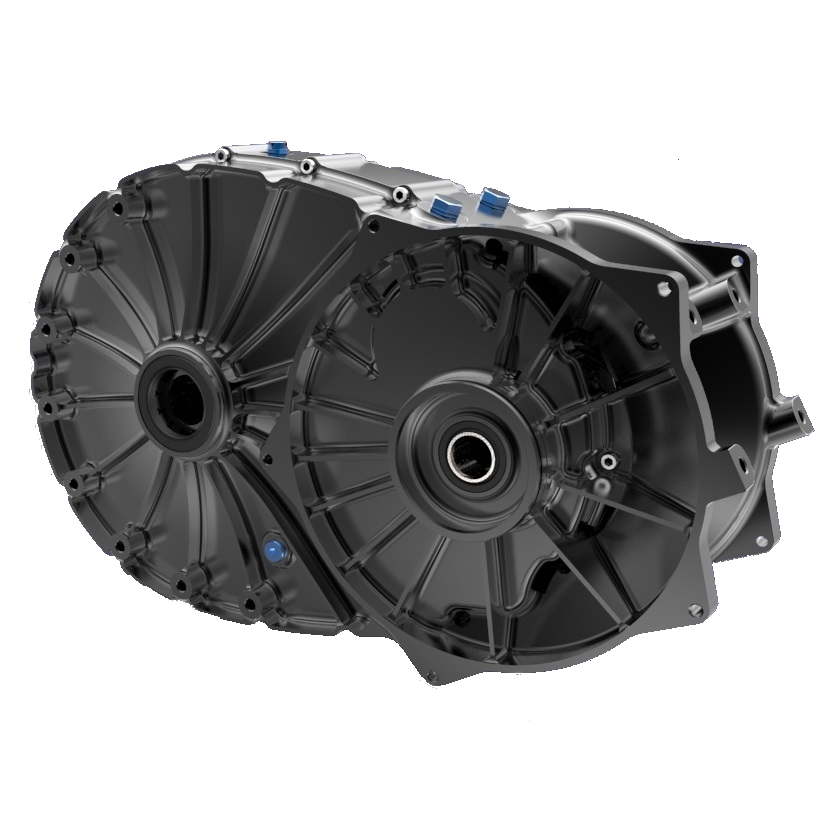

Gearbox, Magelec PropulsionGearbox F06V
- Torque Vector
- High Speed
- Light Weight
| Max Input Torque: |
600x2Nm |
|
| Max Input Speed: |
12,500rpm |
|
| Weight (dry): |
22.5kg |
|
| Center Distance: |
215mm |
|
| Reduction Ratio Range: |
5.67~6.00 |
|
| Peak Efficiency: |
≥98% |
|
| Application: |
Vector Drive |
|
| Fit with MAGELEC MGUs: |
M21x |
|
| Differential Type: |
NA |
|
| Max Output Torque: |
3600x2Nm |
|
| Gear Type: |
Spur |
|
| Lubrication Type: |
Splash (E-Pump Option) |
|
| Park Lock (Option): |
NO |
|
| Output Flange (Option): |
YES |
