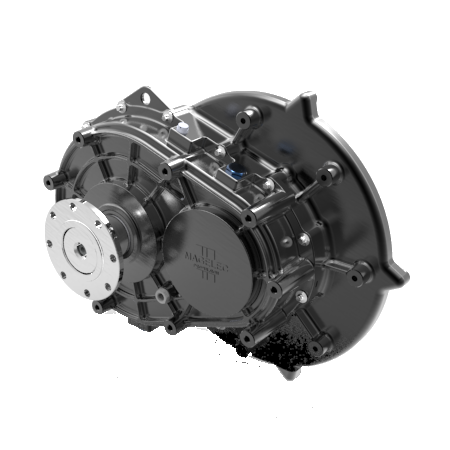

Gearbox, Magelec PropulsionGearbox F12L
- Smaller in size, lighter in weight
- Optional ratios, optimised integration with motor
| Max Input Torque: |
1200Nm |
|
| Max Input Speed: |
7500rpm |
|
| Weight (dry): |
23.5kg |
|
| Center Distance: |
165mm |
|
| Reduction Ratio Range: |
1.02~3.97 |
|
| Peak Efficiency: |
≥98% |
|
| Application: |
Longitudinal |
|
| Fit with MAGELEC MGUs: |
M24Px |
M27Px |
| Differential Type: |
NA |
|
| Max Output Torque: |
4770Nm |
|
| Gear Type: |
Helical |
|
| Lubrication Type: |
Splash |
|
| Park Lock (Option): |
NO |
|
| Output Flange (Option): |
YES |
Seal Kits and Accessories
