Axial Flux PMSM Motor, Magelec Propulsion

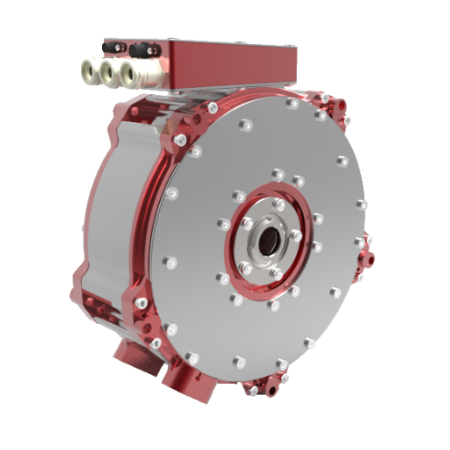

Motor M21SX-S
- High torque and power density
- Low rotor inertia
- Water cooling
- Traction specification

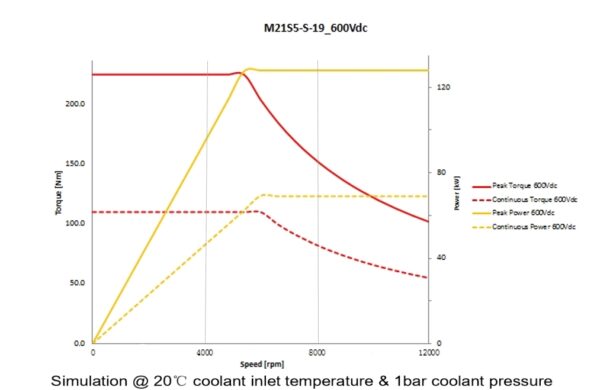

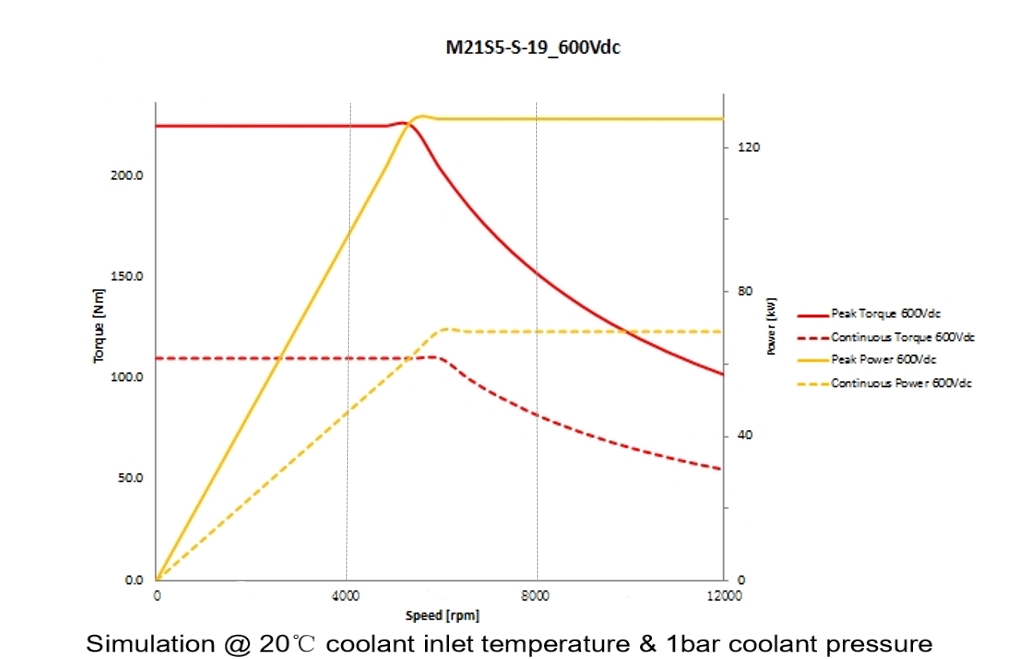

| Torque Cont: | 110Nm | |
| Torque Peak: | 225Nm | |
| Power Cont: | 70kW | (600V 5Turns) |
| Power Peak: | 130kW | (600V 5Turns) |

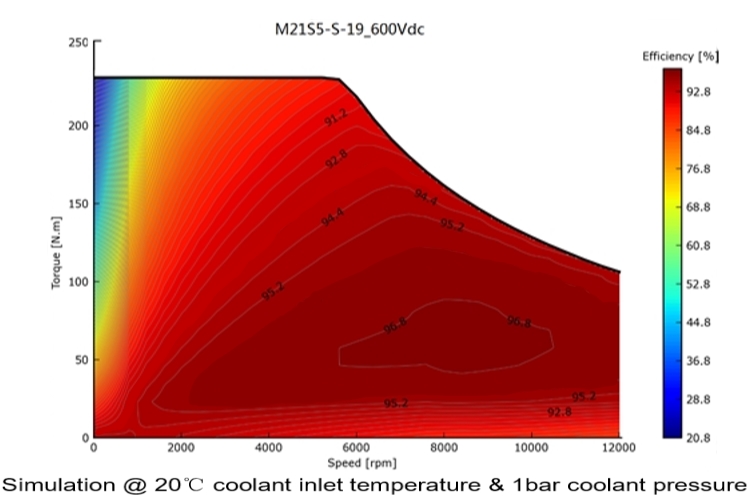

| Efficiency Peak: | >96% | |
| Speed Max: | 12500rpm | |

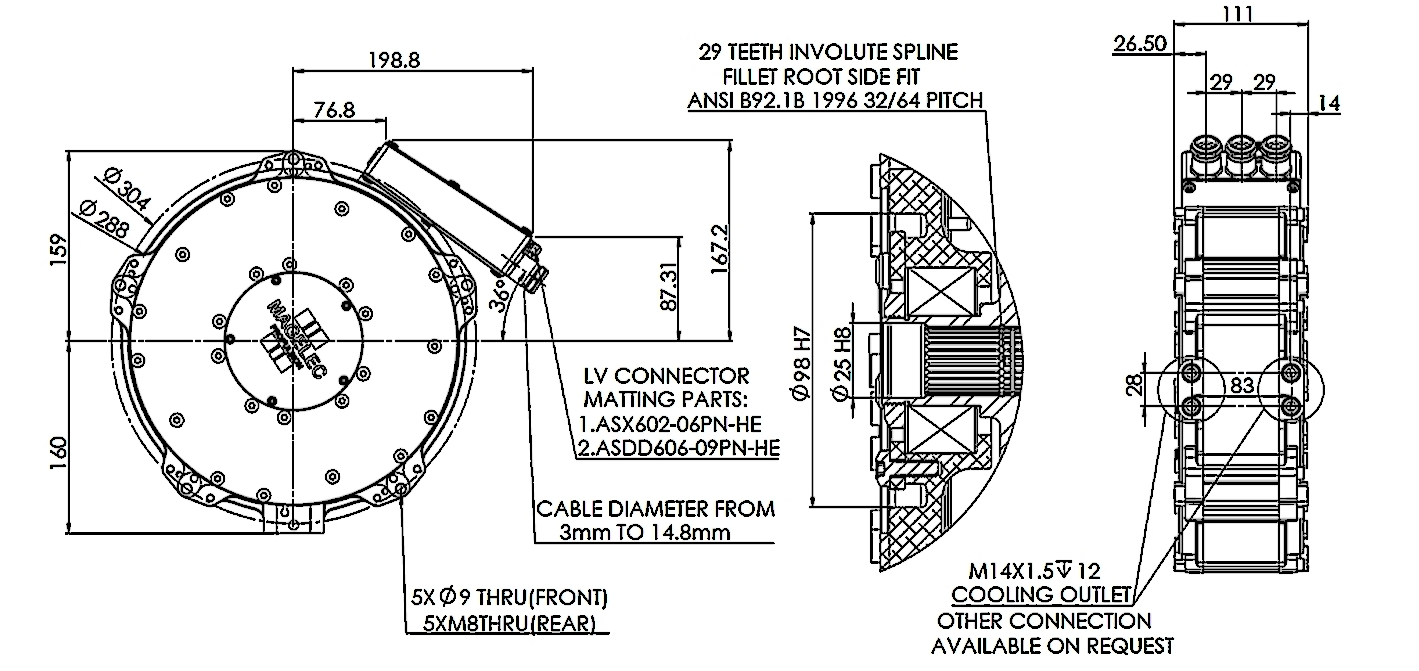

| Case Φ: | 288mm | |
| Case L: | 111mm | |
| Mass: | 23.5kg |
