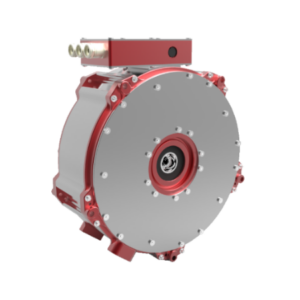

Axial Flux PMSM Motor, Magelec Propulsion

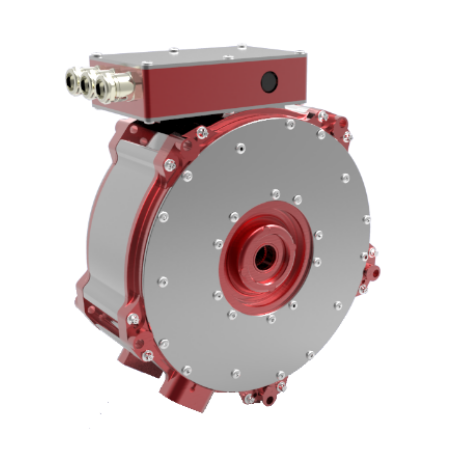

Motor M21Px-S
- High voltage
- Distributed winding
- Traction specification
- Water cooling

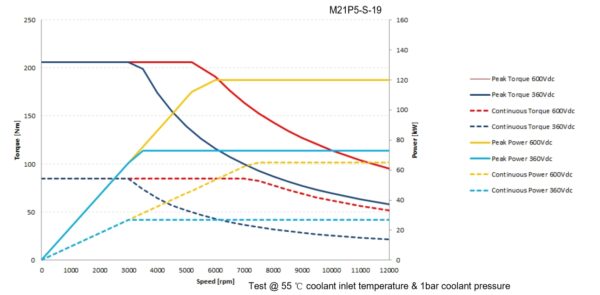

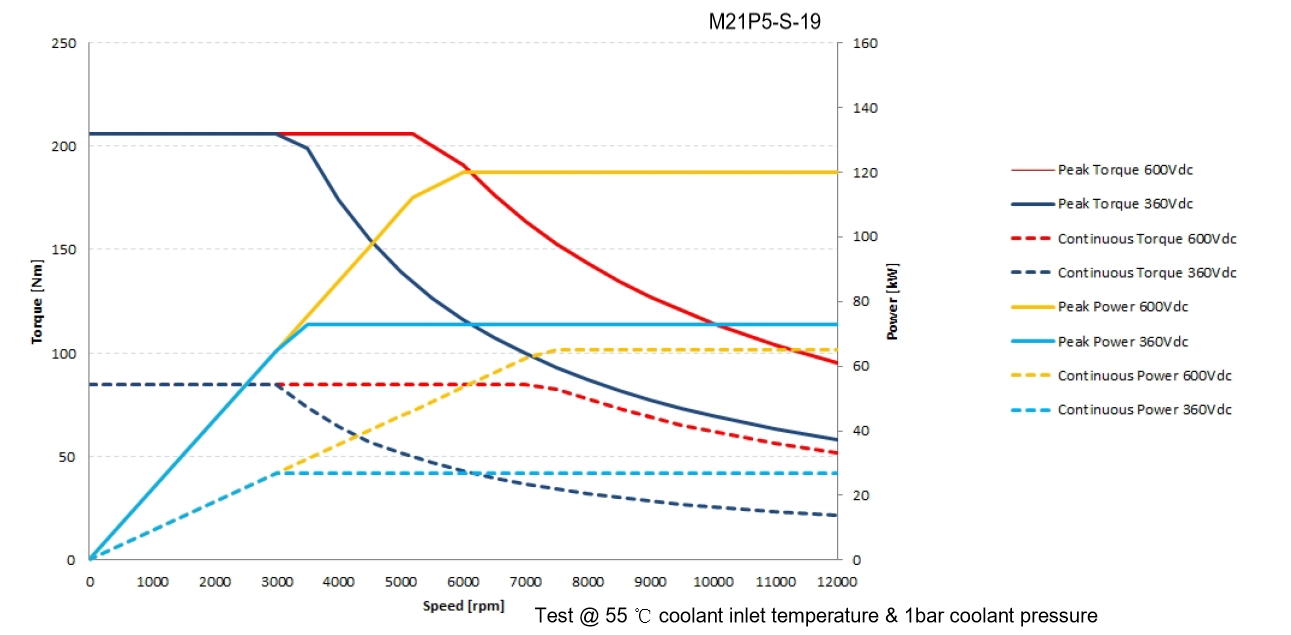

| Torque Cont: | 85Nm | |
| Torque Peak: | 206Nm | |
| Power Cont: | 58kW | (600V 5Turns) |
| Power Peak: | 120kW | (600V 5Turns) |

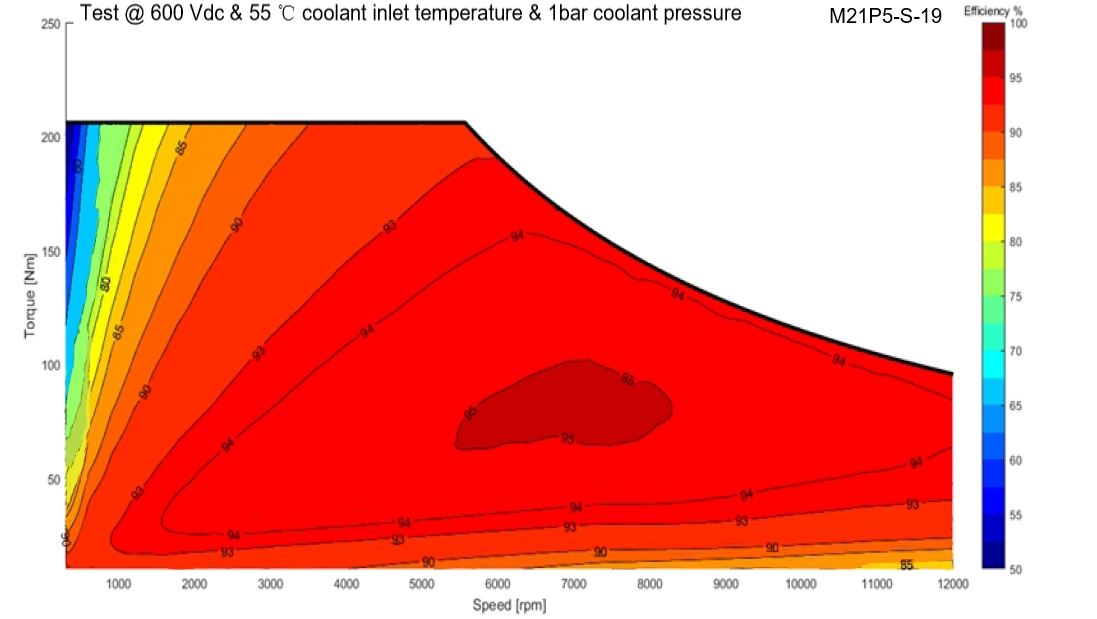

| Efficiency Peak: | >95% | |
| Speed Max: | 12000rpm | |

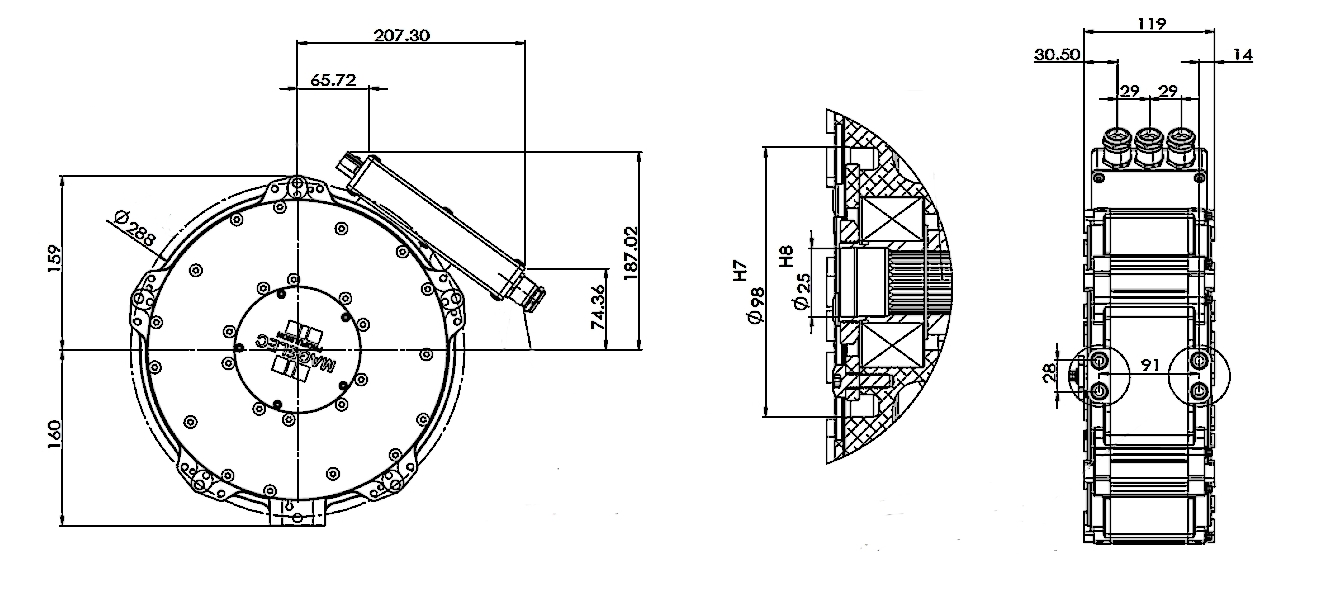

| Case Φ: | 288mm | |
| Case L: | 119mm | |
| Mass: | 23kg |
