Axial Flux PMSM Motor, Magelec Propulsion

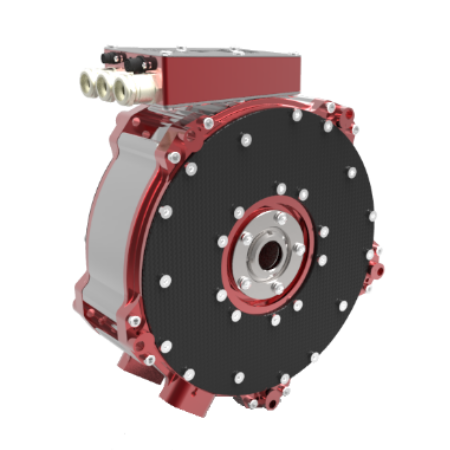

Motor M21RX-S
- High torque and power density
- low rotor inertia
- traction specification
- Water cooling

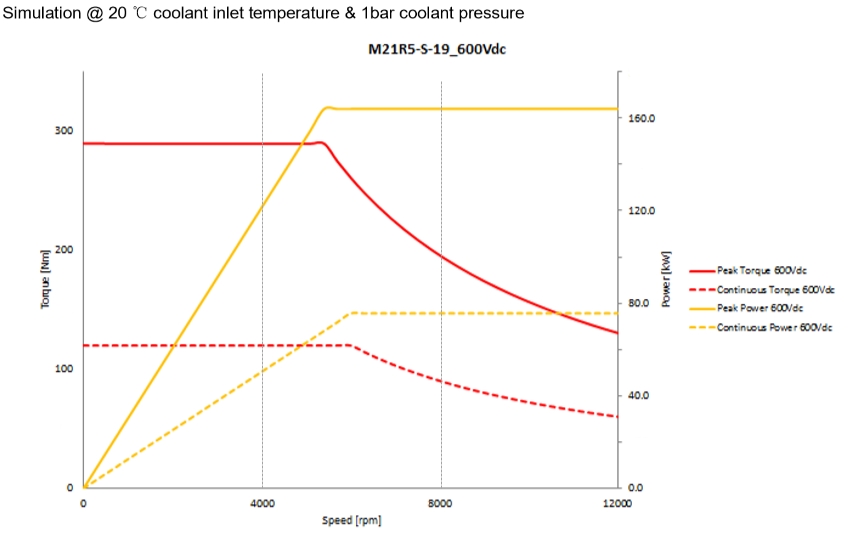

| Torque Cont: | 120Nm | |
| Torque Peak: | 290Nm | |
| Power Cont: | 75kW | (600V 5Turns) |
| Power Peak: | 164kW | (600V 5Turns) |

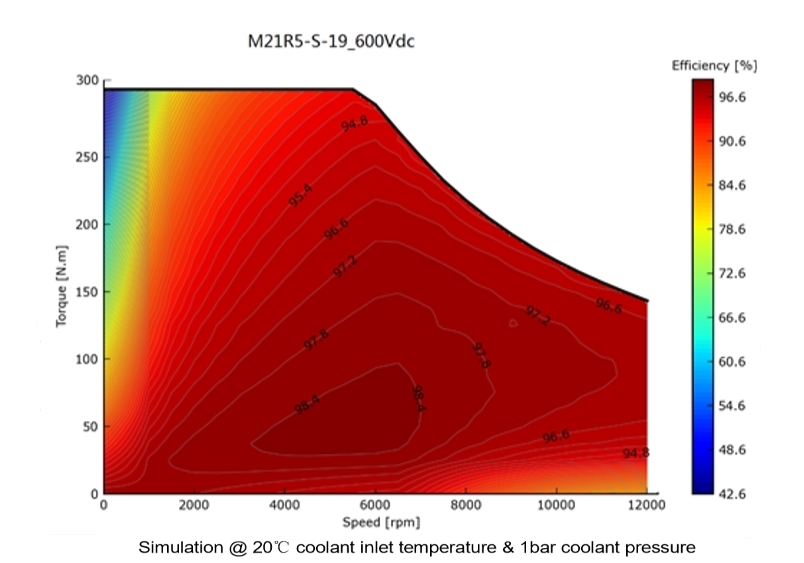

| Efficiency Peak: | >97% | |
| Speed Max: | 12500rpm | |

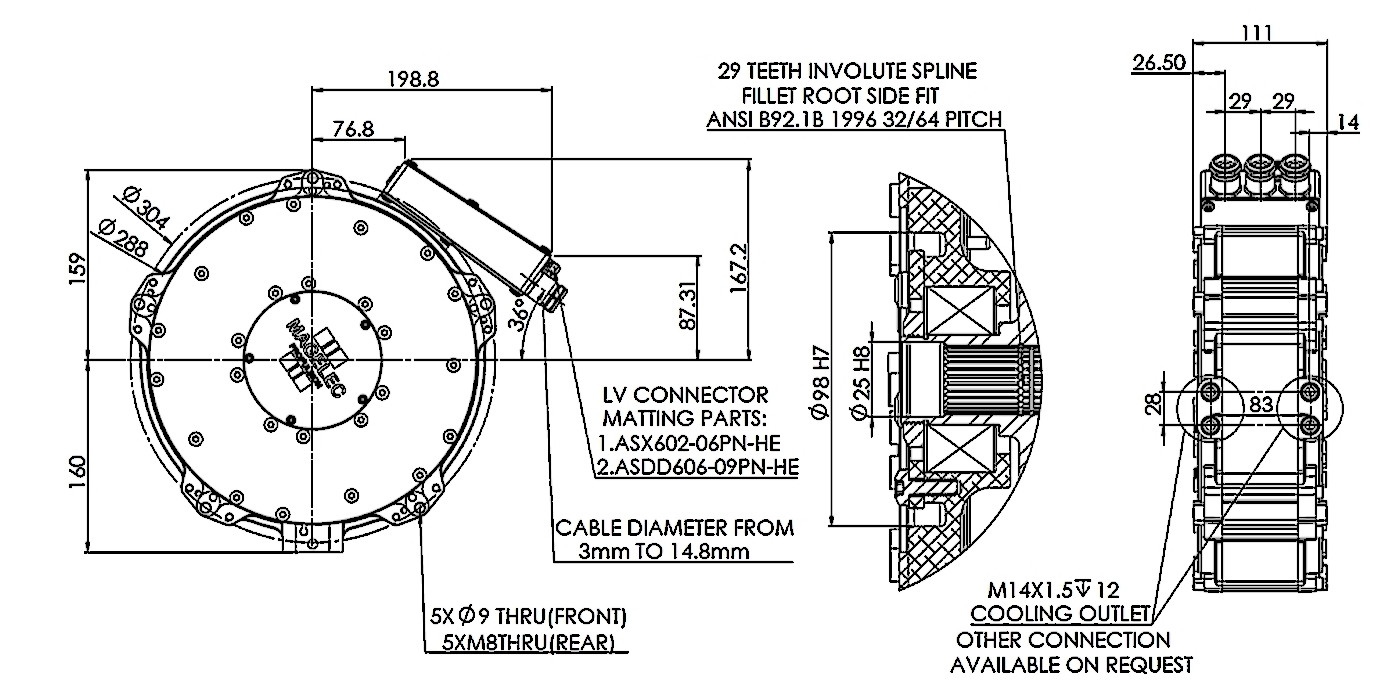

| Case Φ: | 288mm | |
| Case L: | 111mm | |
| Mass: | 23.7kg |
