Axial Flux PMSM Motor, Magelec Propulsion

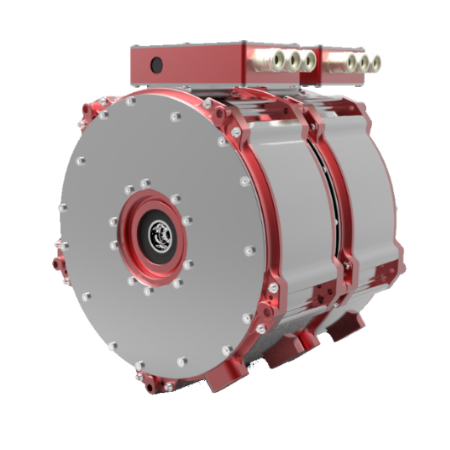

Motor M27Px-D
- High voltage
- Distributed winding
- Traction specification
- Water cooling
| Torque Cont: | 430Nm | |
| Torque Peak: | 1160Nm | |
| Power Cont: | 154kW | (600V 5Turns) |
| Power Peak: | 348kW | (600V 5Turns) |
| Efficiency Peak: | >95% | |
| Speed Max: | 7350rpm | |

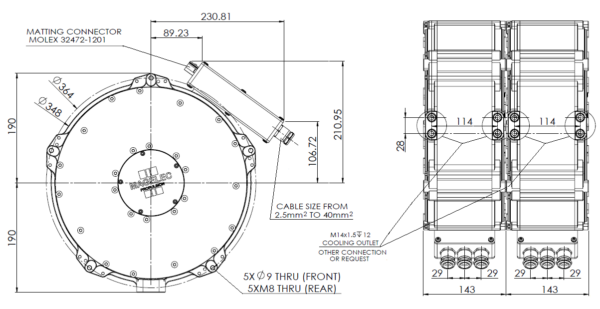

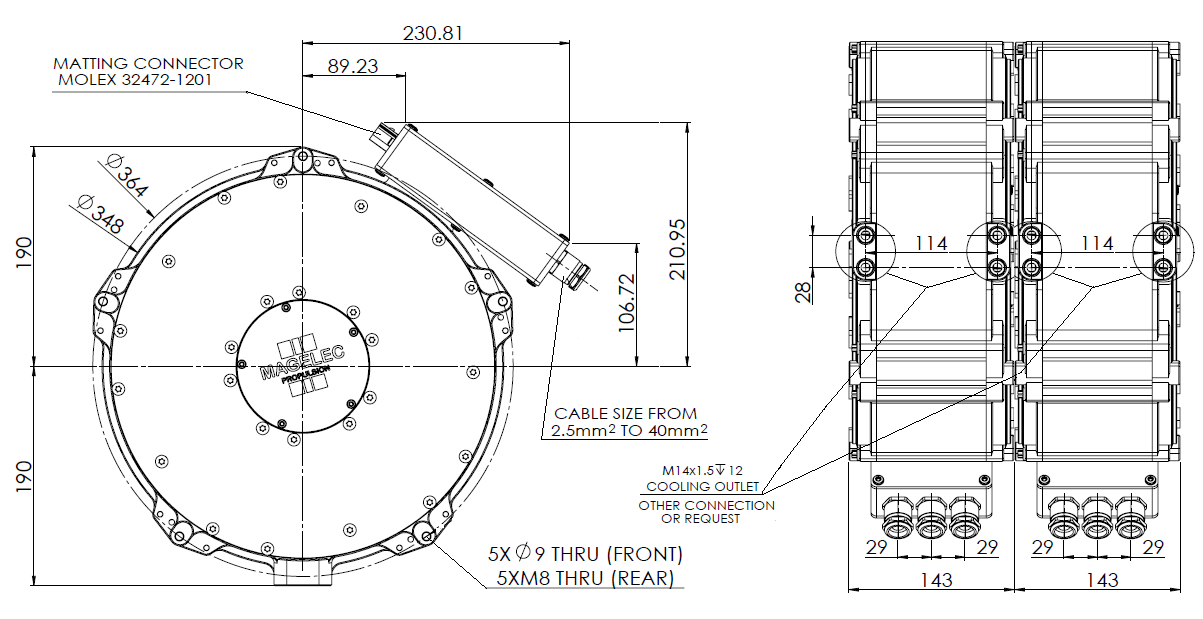

| Case Φ: | 348mm | |
| Case L: | 286mm | |
| Mass: | 87.4kg |
